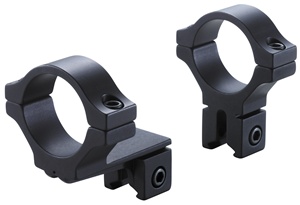

BKL-274 0.6" Long Offset Dovetail Rings
BKL 1" Offset Dovetail Rings

Alternative Views:


Model 274 comes with Model 257 and is designed to increase eye relief adjustment on receivers that have very little dovetail or where bolt is too far forward. Available in Matte Black and Silver.

Also available in 30mm, item# BKL-374.



Item# Item Name Our Price Qty Add
BKL-274-MB BKL-274 0.6" Long Offset Dovetail Rings - Matte Black
$37.95
Out of Stock
BKL-274-S BKL-274 0.6" Long Offset Dovetail Rings - Silver
$37.95
Out of Stock
Check the items you wish to purchase, then click


Technical Specs:
  • Off Set: 1.35"
  • Base and Ring Clamp Width: 0.60"
  • Bottom of Mount to bottom of Scope Tube: 0.774"
  • Weight: 5.5 oz.
  • Model 257 OAL: 0.60"
  • Model 274 OAL: 2"
  • This item sold as a set



Average Customer Review: 5 of 5 Total Reviews: 3 Write a review.

  1 of 1 people found the following review helpful:

BLK 0.6" offset Dovetail 1" Rings May 6, 2013
Reviewer: Anonymous Person from Dawsonville, GA United States
Needed to position a Simmons 3-9x32  22 Mag scope 2" foward on a Winchester model 9422 Mag XTR leaver action to get the needed 3" eye  relief. After weeks of looking found the BLK 274 Offset rings that worked perfect. Great fit for a great combination.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

Offset dovetail rings January 22, 2011
Reviewer: Robert E. aka Night Stalker from PA, United States
Purchase these for my Mossberg 640k Chuckster and they are perfect!
You guys do a Super job! And thanks for not using Metric hardware.
Double thumbs up!!!


Was this review helpful to you?

  0 of 0 people found the following review helpful:

Offset dovetail rings November 1, 2010
Reviewer: Tom K from olympia, WA United States
These rings were a relatively inexpensive, straightforward  answer to how to mount a scope on my Walther LGM-1 SSP air rifle.  The loading gate lever is so long that it wouldn't clear the turrets when the rifle cocked.  I was either going to have to engineer a new lever or mount the scope almost 2" high because a short dovetail precluded separating the mounts any further apart to create clearance.  By using cantilevered mount, I was able to keep the scope close to the bore center and get the separation necessary to allow the lever to rotate fully without hitting the scope.

I'm back to order a second set...

Was this review helpful to you?
