BKL-254D7 4" Long Drop Compensated Cantilever with 1-5/8" Clamping Length

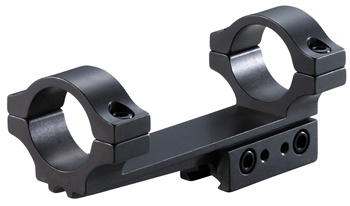

BKL 4-inch Long Cantilever Dovetail Mount With Drop Compensation

Model 254 is a longer version of Model 253, allowing additional overhang and scope adjustment between rings. Available in Matte Black only.

.007" Drop Compensated (D7) = 7 thousandths per inch of drop compensation, which equates to 24 minutes of angle at 100 yards

BENEFITS
Raises your group so that you don't run out of vertical adjustment
Keeps you closer to the optical center

Click here to view the Drop Compensation Table







Item# Item Name Our Price Qty Add
BKL-254D7-MB BKL-254D7 4" Long Drop Compensated Cantilever with 1-5/8" Clamping Length - Matte Black
$49.95
Check the items you wish to purchase, then click


Technical Specs:
  • Overall Length: 4
  • Clamp Length: 1.65
  • Ring Width: 0.6
  • Bottom of Mount to bottom of Scope Tube: 0.974
  • Turret Clearance: 0.125
  • Weight: 5.1 oz.
